In modern mining crushers—including hydraulic cone crushers, hydraulic jaw crushers, and mobile crushing plants—the directional valve is a core component of the hydraulic control system. It serves as the "nerve center" that manages, distributes, and reverses the flow of hydraulic fluid, enabling precise control over cylinder movement, pressure regulation, overload protection, cavity cleaning, adjustment, and locking functions. In the high-load, dusty, vibrating, and continuous working environment of mining crushing equipment, directional valves ensure stable, responsive, and safe operation of all hydraulic actuators. Without reliable directional control, crushers cannot perform automatic adjustment, overload relief, or reset functions, directly affecting production efficiency, equipment safety, and operating cost. This article explains in detail the working principle, key functions, and operational importance of directional valves in mining crushers.



The primary function of a directional valve is to control the direction of hydraulic oil flow and thereby determine the motion direction of hydraulic cylinders or motors. In mining crushers, multiple hydraulic cylinders perform different tasks: adjusting the closed-side setting (CSS), lifting the moving cone or jaw, releasing overload pressure, cleaning the crushing chamber, and locking the adjustment system. The directional valve opens, closes, or switches internal oil passages according to electrical or manual signals, directing high-pressure oil into the required cylinder chamber. For example, when the operator needs to increase or reduce the discharge opening, the directional valve sends oil to either the rod side or cap side of the adjustment cylinder, causing the piston to extend or retract. This precise flow control ensures smooth, stable, and controllable movement of key mechanisms. Without directional valves, hydraulic systems could only maintain fixed pressure or flow, unable to achieve functional switching or directional movement.



A second critical role is to support automatic overload protection, the most important safety feature in modern mining crushers. During crushing, uncrushable objects such as iron, steel, or large hard rocks often enter the chamber, creating extreme pressure that can damage the mantle, concave, shaft, or frame. The directional valve works with pressure sensors and relief valves to quickly switch flow direction and open the bypass circuit. This allows hydraulic oil to discharge rapidly, causing the crushing chamber to temporarily open and release the foreign body. Once the obstacle passes, the directional valve resets automatically, restoring normal working pressure and closing the chamber. This fast-acting protection prevents component breakage, reduces downtime, and avoids costly major repairs.



Thirdly, the directional valve enables hydraulic cavity cleaning and tramp iron release, a highly valuable function in continuous mining operations. When material blockage or overload occurs, traditional mechanical crushers must be shut down and manually cleaned, which is dangerous and time-consuming. With a directional control system, the valve can direct hydraulic power to fully retract the adjustment cylinder, opening the discharge opening to its maximum position. This allows blocked material, slurry, or uncrushable parts to fall out automatically. The entire process can be completed remotely without stopping the main drive, greatly improving safety and production continuity.



Fourthly, directional valves provide stable and reliable locking and holding functions for the crushing chamber setting. After the operator adjusts the CSS to the desired size, the system must maintain this position even under strong impact and vibration. The directional valve, especially the pilot-operated or solenoid-controlled type, can close the oil passage and lock the cylinder in place. This prevents the cavity gap from changing due to pressure fluctuations or mechanical shock. Stable locking ensures consistent product particle size, improves grading quality, and reduces fluctuations in production capacity.



Fifthly, directional valves support centralized control and automation of crushing equipment. Modern mining crushers use electrical control systems, PLCs, and touchscreen panels to achieve one-key operation. The directional valve acts as an electrically controlled actuator that receives signals from the control system to switch functions automatically. It can be programmed for sequential actions such as start-up, adjustment, protection, reset, and shutdown. This automation reduces manual intervention, improves operating accuracy, and allows the crusher to integrate into intelligent crushing production lines.



In addition, directional valves enhance system stability and response speed under harsh working conditions. Mining crushers generate strong vibration, high temperatures, and large pressure pulses during operation. High-quality directional valves are designed with anti-shock, anti-pollution, and low-wear structures to maintain stable performance. They respond quickly within milliseconds to pressure changes or electrical signals, ensuring the hydraulic system reacts immediately to overload or adjustment commands. This responsiveness protects the machine and maintains continuous operation.



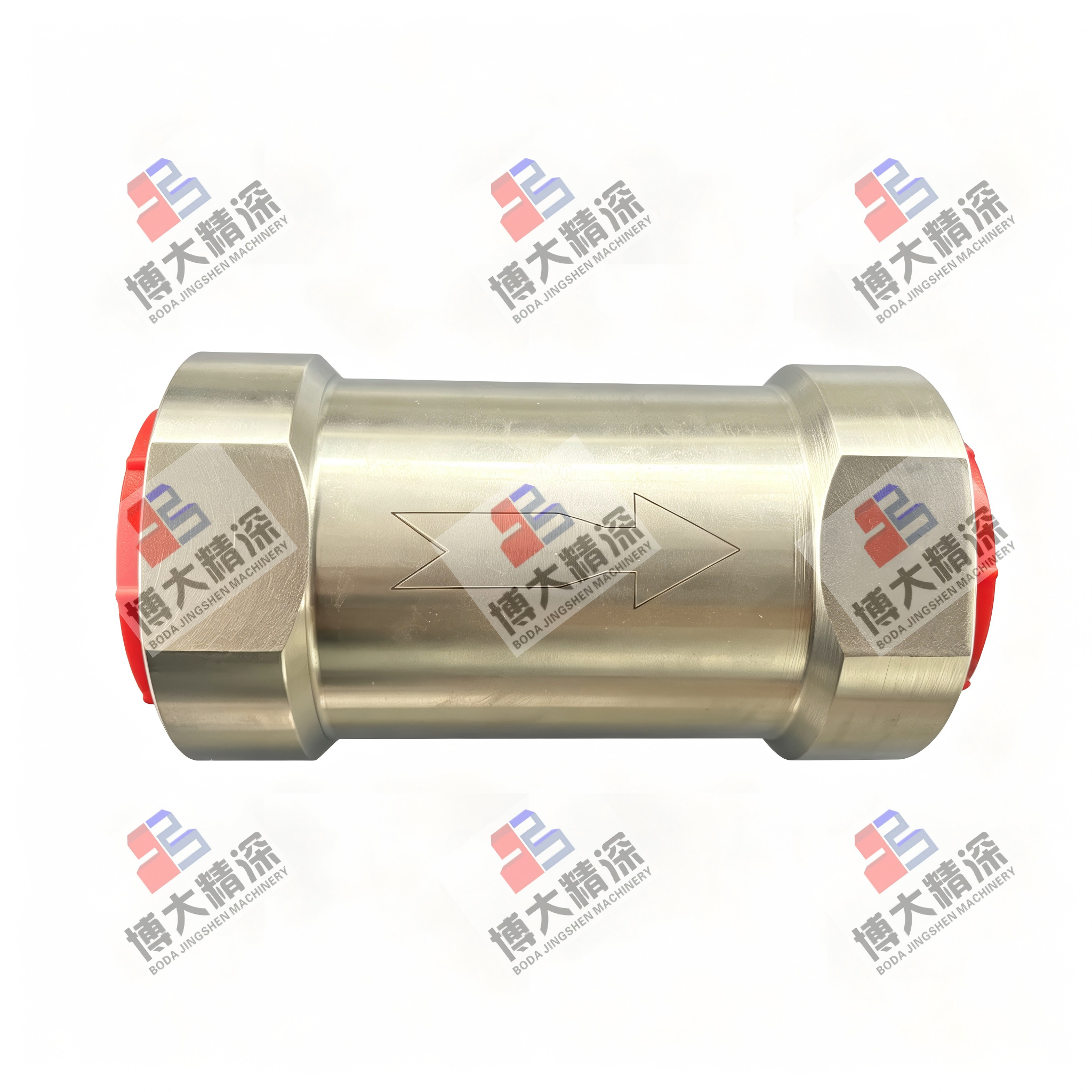

Directional valves used in mining crushers are typically solenoid directional valves, pilot-operated directional valves, or cartridge directional valves, chosen for high pressure resistance, large flow rate, long service life, and strong anti-pollution ability. They are usually installed in the main hydraulic control manifold together with relief valves, check valves, and flow control valves to form a compact and efficient hydraulic control unit.



In summary, the directional valve is an indispensable core component in the hydraulic system of mining crushers. It controls movement direction, provides overload protection, enables cavity cleaning, maintains position locking, and supports intelligent automation. It directly affects equipment safety, production efficiency, product quality, and maintenance cost. In the development of large-scale, intelligent, and highly reliable mining equipment, the performance of directional valves will continue to be upgraded, providing more stable and powerful support for mineral processing operations.
