The Function and Working Principle of Cutting Rings in Mining Crushers
In the harsh and high-load environment of mining operations, crushers serve as core equipment for ore processing, and the cutting ring (also known as a torch ring or burning ring) stands out as a critical sacrificial and functional component, especially in cone crushers—the most widely used type for secondary and tertiary crushing. This component, though seemingly simple, undertakes multiple key tasks such as positioning, sealing, flow regulation, and maintenance assistance, directly influencing the crusher’s operational stability, crushing efficiency, and service life. Below is a detailed analysis of its functions and working principles.
Basic Overview of the Cutting Ring

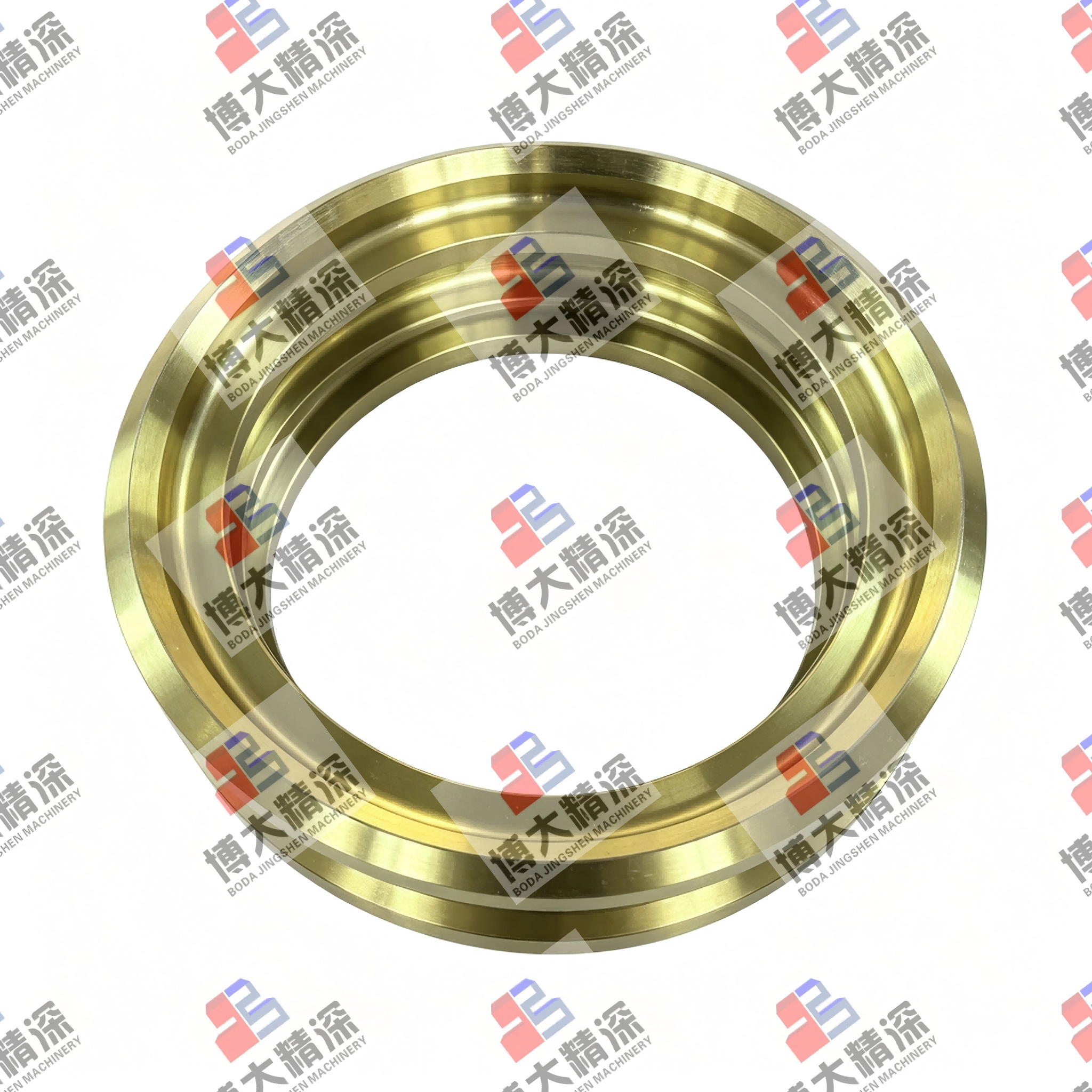

The cutting ring is a circular metal part installed between the mantle (moving cone liner) and the head nut of a cone crusher, with a flat, ring-shaped structure. It is usually made of high-grade carbon steel or manganese steel with a hardness of 200–350 HB, balancing sufficient strength for normal operation and easy cutting during maintenance. Its outer diameter matches the mantle’s top edge, and the inner diameter fits the head nut, forming a transitional and connecting component between the two. Unlike durable wear parts such as mantles and concave liners, the cutting ring is designed as a sacrificial part—it is intentionally consumed during maintenance to protect more expensive core components.
Core Functions of the Cutting Ring
1. Precise Positioning and Locking of the Mantle
The mantle, the key component that directly crushes ore, is mounted on the crusher’s eccentric head and fastened by the head nut. The cutting ring is sandwiched between the mantle and the head nut, filling the assembly gap between them. During installation, after the mantle is centered on the head, the head nut is tightened, and the cutting ring is welded to both the mantle and the head nut. This dual welding locks the mantle in a fixed position, preventing axial displacement or rotational deviation of the mantle under the strong impact and vibration of ore crushing. This positioning function ensures the concentricity between the mantle and the concave liner, maintaining a uniform crushing gap and avoiding uneven wear of the liner caused by displacement.
2. Dust Sealing and Contamination Prevention
The interior of a cone crusher involves precision components such as the main shaft, eccentric assembly, and bearings, which are highly sensitive to dust, ore particles, and other contaminants. The cutting ring forms a tight annular seal at the lower part of the head, blocking dust and fine ore from the crushing chamber entering the lubrication system and precision fitting surfaces. This sealing effect prevents abrasive particles from mixing with lubricating oil, reducing wear on bearings and shafts, and avoiding equipment failures such as jamming and overheating. In the harsh mining environment with high dust concentration, this function is critical to extending the service life of the crusher’s core transmission components.
3. Regulation of Material Flow and Crushing Chamber Parameters
The cutting ring’s outer edge forms a partial barrier at the top of the crushing chamber (between the mantle and concave liner), which can adjust the flow rate and distribution of feed material. By reasonably designing the cutting ring’s width and height, the material’s residence time in the crushing chamber can be controlled: a larger ring size prolongs residence time, facilitating full crushing of hard ore to finer granularity; a smaller ring size accelerates material discharge, increasing throughput for coarse crushing scenarios. Meanwhile, the cutting ring cooperates with the adjustment ring to fine-tune the crushing chamber’s geometry, ensuring the material is evenly distributed around the mantle, avoiding local overloading and wear, and improving overall crushing efficiency.
4. Sacrificial Protection and Maintenance Assistance
As a sacrificial component, the cutting ring is designed to be easily cut and removed during liner replacement, protecting high-value parts such as the head nut and main shaft. After long-term operation, the mantle is severely worn and needs replacement. At this time, the cutting ring is cut off with a flame or cutting tool, releasing the locking state between the mantle and the head nut. This process avoids direct cutting or prying of the head nut and main shaft, which would cause permanent damage to these precision components. Each time the mantle is replaced, a new cutting ring is installed, ensuring the next assembly’s positioning and sealing performance. This "sacrifice the small to protect the large" design significantly reduces maintenance costs and downtime.
Working Principle of the Cutting Ring
The working principle of the cutting ring revolves around mechanical assembly coordination, material flow guidance, and sacrificial wear logic, which can be divided into three stages: installation and positioning, normal operation, and maintenance and replacement.
1. Installation and Positioning Stage: Interference Fit and Welding Locking
During crusher assembly, the cutting ring is first placed on the mantle’s top positioning groove, with the inner ring closely attached to the head nut’s outer wall. The head nut is then tightened axially, creating an interference fit between the cutting ring, mantle, and head nut, eliminating assembly gaps. Finally, the cutting ring is welded circumferentially to both the mantle and the head nut, forming an integrated locking structure. This installation method ensures the cutting ring remains fixed relative to the mantle and head nut during operation, providing stable positioning and sealing foundations.
2. Normal Operation Stage: Load Bearing, Sealing, and Flow Regulation
When the crusher starts, the motor drives the eccentric assembly to rotate, causing the mantle to gyrate eccentrically inside the concave liner. The cutting ring rotates synchronously with the mantle and head nut, bearing three types of loads:
- Axial compressive force: From the head nut’s tightening force and the reaction force of ore crushing, maintaining close contact between the mantle and the head.
- Radial friction and shear force: From the relative movement of material at the crushing chamber’s top and the eccentric rotation’s tangential force, resisting displacement and deformation.
- Impact vibration force: From the instantaneous impact of hard ore on the mantle, buffering and absorbing part of the vibration to reduce the load on the head nut.
During this process, the cutting ring’s outer edge controls the material flow: ore entering the crushing chamber is blocked by the cutting ring’s outer edge, slowing down and spreading evenly around the mantle, ensuring each part of the mantle participates in crushing, avoiding local wear. Meanwhile, the cutting ring’s inner ring maintains a tight seal with the head nut, blocking dust from entering the interior.
3. Maintenance and Replacement Stage: Sacrificial Cutting and Renewal
After 3–6 months of operation (depending on ore hardness and workload), the mantle wears to the limit and needs replacement. At this time, the cutting ring, as a sacrificial part, is cut off along the circumferential weld with an oxy-acetylene flame or plasma cutter. Since the cutting ring is made of low-carbon steel, it can be cut quickly without damaging the high-hardness head nut and main shaft. After cutting, the head nut is unscrewed, and the worn mantle is removed. A new mantle is then installed, a new cutting ring is placed, and the welding and locking process is repeated. This working cycle ensures the crusher’s long-term stable operation with low maintenance costs.
Material and Structural Design Advantages
The cutting ring’s performance depends on its material and structural design. High-grade carbon steel or manganese steel is selected for its good weldability, moderate hardness, and easy cutting—hard enough to resist deformation during operation but soft enough for flame cutting during maintenance. The flat annular structure has no complex contours, reducing processing costs and ensuring uniform force distribution. The precise dimensional tolerance (Ra 0.8–3.2 μm) ensures close contact with the mantle and head nut, avoiding gaps that affect positioning and sealing.
Conclusion
The cutting ring in mining crushers is a small but indispensable component, integrating positioning, sealing, flow regulation, and sacrificial protection functions. Its working principle is based on precise assembly coordination, adaptive load bearing, and sacrificial wear design, effectively solving problems such as mantle displacement, dust contamination, and difficult maintenance in cone crushers. In mining production, selecting high-quality cutting rings and standardizing their installation and replacement can significantly improve crusher operational efficiency, reduce failure rates, and extend equipment service life, bringing substantial economic benefits to mining enterprises.
