The taper lock bushing, also commonly called a taper sleeve, is a core connecting component widely used on the belt pulley of mining crushers. As a key part between the pulley hub and the drive shaft, it adopts a split tapered structure and serves as a transitional fastening unit. Mining crushers operate under harsh working conditions featuring heavy load, frequent vibration, dust pollution and alternating impact force. Ordinary flat key connections or direct interference fits often suffer from loosening, shaft wear, slipping and difficult disassembly during long-term operation. The taper lock bushing perfectly solves these pain points with its unique conical cooperation design. It not only realizes reliable transmission of torque but also protects the main shaft and pulley, simplifies assembly and maintenance, and improves the overall running stability of the crusher’s drive system. This article elaborates on its structural features, core functions and complete working principle in detail.

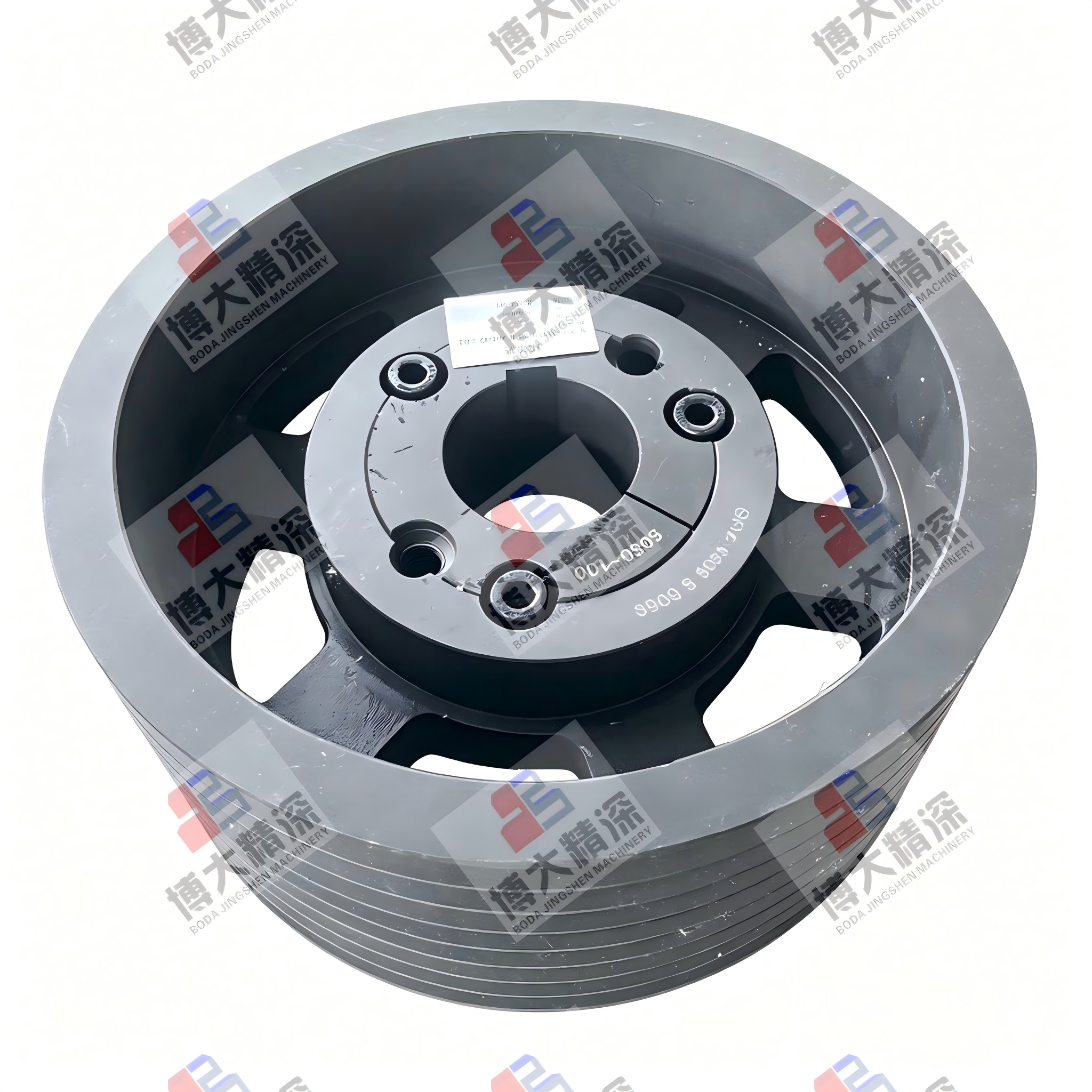

First of all, it is necessary to understand the basic structure of the taper lock bushing matched with the crusher pulley. The standard taper lock bushing is a split cylindrical sleeve with an outer conical surface and an inner cylindrical hole. Its outer wall is processed into a standard taper, matching the inner tapered hole of the pulley hub. A longitudinal slit is designed on the bushing body, which gives it good elasticity and deformability. Multiple bolt holes are distributed around the end face for installation and locking. The inner hole of the bushing closely fits the outer circle of the crusher drive shaft. Generally, it is made of high-quality cast steel or medium carbon steel after quenching and tempering treatment, which has high surface hardness, strong wear resistance and sufficient mechanical toughness to withstand continuous vibration and torque impact in mining sites. Unlike integral sleeves, the split structure is the core basis for its excellent locking and disassembly performance.

The first core function of the taper lock bushing is reliable torque transmission and anti-slip locking. The belt pulley of a crusher relies on belt drive to transmit power from the motor to the main shaft, so torque transmission must be stable and continuous. When the equipment is running, once the pulley slips relative to the shaft, it will cause power loss, belt abrasion, and even abnormal vibration of the whole machine, seriously affecting crushing efficiency. The taper lock bushing uses the wedge effect of the conical surface. When the fastening bolts are tightened, the pulley hub is pressed along the taper direction toward the bushing. Under the extrusion of the tapered surface, the split bushing shrinks radially, so that the inner hole is tightly held on the drive shaft. Large static friction is generated between the bushing and the shaft, as well as between the bushing and the pulley hub. This friction force completely bears the operating torque of the crusher, replacing the traditional flat key for power transmission. Even under strong impact and vibration generated by ore crushing, this combined locking structure will not loosen easily, ensuring synchronous rotation of the pulley and the drive shaft all the time.

Secondly, the taper lock bushing plays an important role in protecting the drive shaft and pulley hub. The main shaft of a mining crusher is a high-precision and high-cost core component. If the pulley is directly installed on the shaft through interference fit, frequent assembly and disassembly will cause scratches, abrasion and deformation on the shaft surface. Once the shaft is damaged, the maintenance cost will be extremely high and the downtime will be prolonged. The taper lock bushing acts as a buffer and protective sleeve between the shaft and the pulley. All extrusion friction and wear during installation, operation and disassembly act on the replaceable bushing, rather than directly on the main shaft. In addition, the uniform radial compression of the tapered structure can evenly distribute the stress on the contact surface, avoiding local stress concentration caused by keyways. It effectively prevents the shaft from cracking or fatigue damage under long-term alternating loads, greatly extending the service life of expensive shafts and pulley hubs and reducing the operating cost of mining equipment.

Convenient installation, positioning and quick disassembly are another prominent advantage of the taper lock bushing. In the daily maintenance of crushers, it is often necessary to remove the pulley to replace bearings, repair the main shaft or replace worn belts. The traditional interference pulley is difficult to disassemble and easy to damage parts by prying. For the taper sleeve structure, the installation process is simple and efficient: first put the taper lock bushing on the drive shaft, then set the pulley onto the outer taper of the bushing, align the bolt holes, and gradually tighten the fastening bolts in diagonal order. With the gradual compression of the tapered surface, the three parts are positioned and locked automatically without complicated calibration. During disassembly, just loosen all fastening bolts, and screw the bolts into the special disassembly threaded holes on the bushing. Under the jacking force, the pulley will separate from the taper surface, and the bushing will rebound and loosen due to its own elasticity. The whole process requires no violent knocking or professional pulling tools, which greatly improves the maintenance efficiency and adapts to the fast-paced production requirements of mining sites.

In terms of working principle, the operation of the taper lock bushing can be divided into three stages: assembly locking, normal operation and disassembly. In the assembly stage, the axial thrust generated by tightening bolts is converted into radial clamping force through the wedge action of the conical surface. The split bushing deforms elastically, forming a double tight fit between the shaft and the pulley to complete positioning and pre-locking. In the normal operation stage of the crusher, the pulley rotates with the motor belt, and the torque is transmitted to the drive shaft through the friction between the pulley, taper bushing and shaft. The conical contact surface can automatically compensate for minor gaps caused by vibration, always maintaining a tight fit state. Even in dusty and humid mine environments, the close fit can also reduce the entry of dust and impurities into the matching clearance, reducing abrasive wear. In the disassembly stage, using the jacking structure to release the axial pressure, the elastic slit of the bushing restores its original state, the radial clamping force disappears, and the pulley and bushing can be taken out smoothly.
