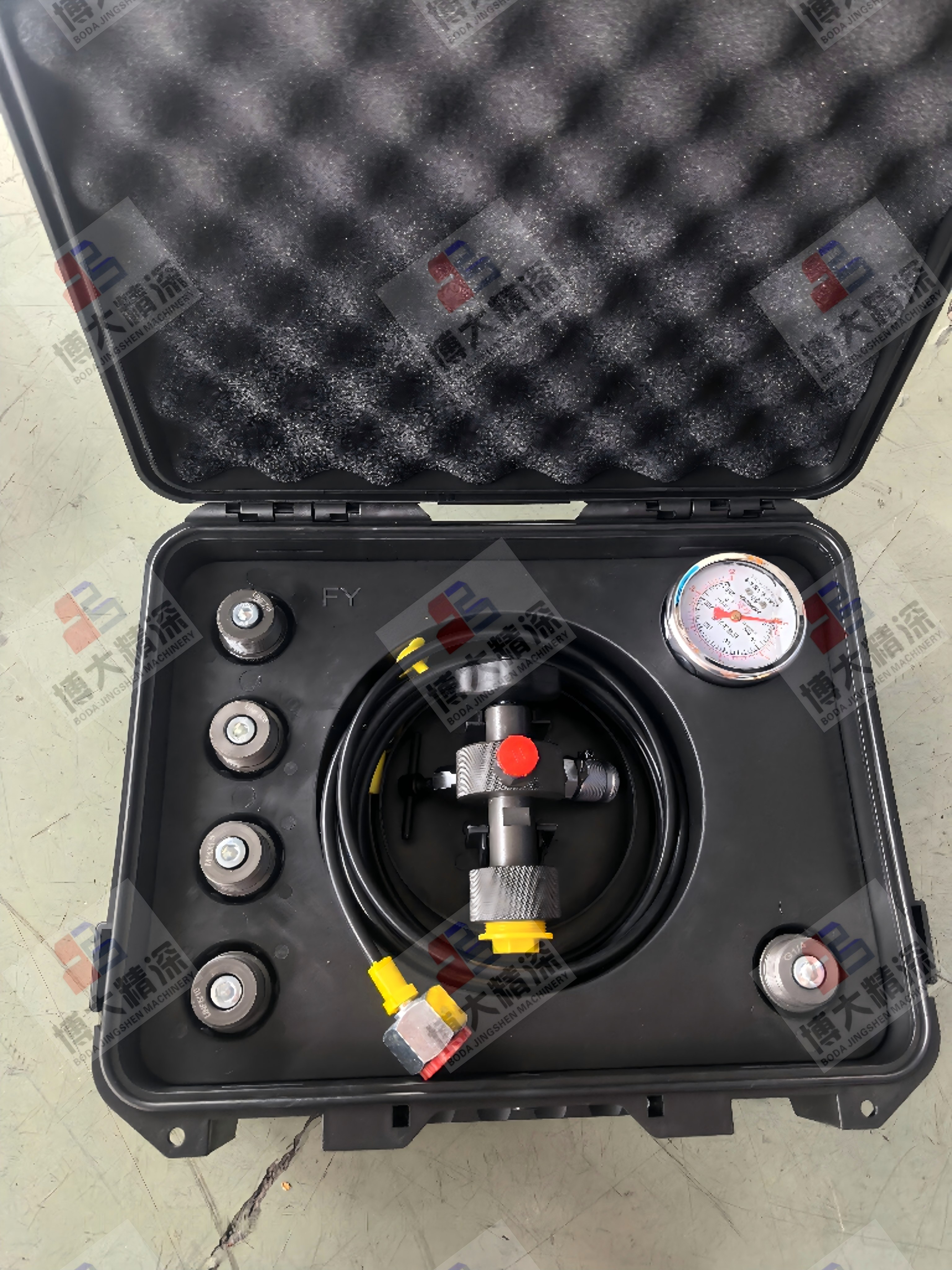

The nitrogen charging kit for hydraulic accumulators of mining crushing machinery is a specialized portable hydraulic auxiliary instrument developed exclusively for pre-charging, pressure testing and pressure relief of bladder-type, piston-type and diaphragm hydraulic accumulators fitted on all kinds of mining crushing equipment, including jaw crushers, cone crushers, impact crushers and mobile crushing stations. Packaged inside a high-strength shockproof engineering plastic carrying case with customized EVA foam inner lining for component fixed storage and anti-collision protection, this integrated charging assembly consists of precision pressure gauge, multi-way control valve assembly, high-pressure resistant rubber hydraulic hose and five interchangeable threaded adapter connectors, which are tailor-made to match mainstream accumulator port specifications globally used in mining crusher hydraulic systems. As an indispensable maintenance accessory in daily mine equipment upkeep workflows, this portable nitrogen filling device directly safeguards the stable operational performance of crusher hydraulic accumulators and prolongs the whole service cycle of crushing machines under harsh underground and open-pit mining working environments with heavy dust, drastic temperature variation and frequent impact load.

The primary core function of this mining-specific accumulator nitrogen charging tool is quantitative pre-charging of dry nitrogen into hydraulic accumulators installed on mining crushers. Hydraulic accumulators on cone crushers and heavy-duty jaw crushers rely on pre-filled high-pressure nitrogen as elastic energy storage medium to absorb instantaneous hydraulic impact shock during stone crushing, compensate system oil volume change caused by temperature fluctuation and supplement instantaneous oil supply for crusher’s hydraulic clearing cylinder and adjustment cylinder. In actual mine operation, nitrogen inside accumulators will gradually leak naturally through seal gaps after long-term continuous operation, resulting in insufficient pre-charge pressure of the accumulator. Connect the tool’s yellow bottom connector to industrial high-pressure nitrogen cylinder outlet via transition fitting, link one of five matched threaded adapters to the oil-gas valve port of crusher accumulator, rotate the tool’s red manual control knob to open internal flow channel, and slowly feed nitrogen gas into the accumulator cavity. The precision dial pressure gauge fixed on the tool box displays real-time internal nitrogen pressure value inside the accumulator dynamically, allowing maintenance technicians to stop gas supply immediately once pressure reading reaches the factory-specified standard pre-charge parameter of the crusher accumulator, realizing precise quantitative nitrogen filling operation. The built-in multi-stage throttling structure inside the control valve effectively avoids instantaneous overpressure inflow that may damage the fragile internal bladder or piston seal of the accumulator, a critical protective design especially vital for high-load mining crusher accumulators working under frequent cyclic pressure alternation.

Regular pre-service pressure inspection is a mandatory daily maintenance procedure for mining crusher hydraulic systems, and this charging kit serves as a dedicated pressure testing instrument without consuming extra nitrogen resources. Without connecting nitrogen source equipment, directly select the corresponding standard adapter from five spare connectors according to the thread size of target crusher accumulator inflation port, fasten the adapter tightly onto the accumulator valve stem, slightly twist the red regulating handwheel to open the detecting passage of the central control valve, then the internal residual nitrogen pressure inside the tested accumulator will be directly transmitted to the high-precision bourdon tube pressure gauge through the high-pressure resistant connecting hose, with real-time pressure data visually presented on the dial scale. Mine maintenance staff can compare measured pressure value with equipment manual’s rated pre-charge standard to judge the working state of the accumulator: if detected pressure is obviously lower than specified value, follow-up supplementary nitrogen charging is required; if pressure exceeds upper limit, implement targeted pressure bleeding operation. This quick pressure check function greatly shortens crusher’s downtime during routine maintenance, avoiding unnecessary equipment disassembly and reducing production loss brought by long-time shutdown of mineral crushing production line. The five assorted interchangeable adapters cover almost all mainstream international thread standards for accumulator inflation ports equipped on domestic and imported mining crushers, including common specifications of HYDAC, OLAER and other world-famous accumulator brands widely matched on Sandvik, Metso cone crushers and Chinese heavy-duty jaw crushers, eliminating the trouble of preparing multiple single-type testing tools for different crusher models on-site.

Unreasonable overfilled nitrogen pressure is one major hidden risk leading to premature scrapping of mining crusher accumulators, as excessive pre-charge pressure will make accumulator’s elastic component lose effective energy absorption ability, cause abnormal vibration of crusher hydraulic circuit and even trigger accumulator housing burst accident under instantaneous peak impact load from ore crushing. Equipped with independent pressure relief passage integrated in the central control valve assembly, this nitrogen charging tool can conduct safe controllable deflation for overpressurized accumulators. After the tool is connected between accumulator and pressure gauge, slightly turn the control valve’s exhaust fine-tuning knob to open tiny exhaust channel, slowly release redundant nitrogen inside the accumulator to ambient atmosphere while continuously observing pressure gauge reading, until internal gas pressure drops down to the factory-designated rated parameter and close the valve to finish deflation. Compared with traditional crude deflation mode of directly pressing accumulator valve core which easily causes sudden sharp pressure drop and damages internal rubber bladder, the tool’s graded fine exhaust design ensures slow, steady and safe pressure reduction, effectively protecting vulnerable internal parts of high-cost mining heavy-load accumulators and cutting down spare part replacement cost for mine enterprises.

Equipped with five different specification metal threaded adapters fixed in reserved installation holes of the tool’s plastic case, this five-in-one nitrogen charging tool achieves universal compatibility for nearly all accumulator configurations mounted on diverse types of mining crushing equipment. Different crusher manufacturers adopt differentiated inflation port thread standards for matched accumulators due to respective design specifications, bringing huge inconvenience for mine maintenance workshops which own mixed-brand crushing equipment fleet covering imported and domestic crushers. The five standardized adapters include common metric and imperial thread sizes prevailing in global mining machinery industry, enabling maintenance crews to switch matching connectors quickly on-site according to actual accumulator port of jaw crusher, cone crusher or mobile crushing plant without purchasing separate dedicated charging tools for each different accumulator thread type. The high-strength alloy steel adapters undergo precision CNC machining and surface anti-rust treatment to resist corrosion from humid mine underground environment and hydraulic oil erosion, guarantee long-term stable sealing performance after repeated frequent screwing and disassembly operations in harsh mining working conditions.

From the perspective of actual mine production management, the proper application of this dedicated accumulator nitrogen charging tool plays an irreplaceable role in stabilizing the overall operating efficiency of mineral crushing production line and controlling mine’s equipment operation expenditure. When crusher accumulator maintains standard rated pre-charge nitrogen pressure, the accumulator can fully exert its designed functions of buffering hydraulic impact, absorbing system pressure spike and storing standby hydraulic energy: during the process when uncrushable tramp iron falls into crusher’s crushing chamber and triggers hydraulic clearing protection action, fully-charged qualified accumulator instantly releases stored hydraulic oil to drive clearing cylinder rapidly to open crusher’s discharge opening for foreign matter removal, preventing major damage to crusher’s main frame and crushing tooth plate; in normal stone crushing working cycle, the accumulator absorbs instantaneous hydraulic pressure fluctuation generated by crushing head’s periodic reciprocating compression against ore, lowering system vibration amplitude of crusher hydraulic station and reducing abnormal wear of hydraulic pump, pipeline and sealing elements of the whole hydraulic system. Without regular pressure maintenance using this nitrogen charging kit, accumulator with insufficient nitrogen pressure loses impact buffering capacity, resulting in frequent hydraulic system failure, frequent shutdown maintenance of crushing equipment and sharp decline of hourly ore processing capacity of the whole crushing production line, which brings massive economic loss to mineral processing plants.

In addition, the compact integrated suitcase-type packaging design improves the tool’s portability greatly for field mine maintenance. Maintenance workers can carry the entire charging kit conveniently to open-pit crushing yard or underground mine crushing chamber for on-site emergency maintenance, avoiding transporting heavy crushing equipment back to repair workshop for accumulator pressure adjustment and cutting down equipment transit cost and idle production time. All internal components are fixed by customized foam lining inside the hard plastic case to avoid component collision and loss during bumpy transportation on rugged mine haulage roads, extending the service lifespan of precision pressure gauge and control valve core.

In conclusion, as a targeted maintenance accessory customized for mining crusher hydraulic accumulator system, the multi-functional nitrogen charging tool integrates nitrogen filling, pressure testing and safe deflation into one portable unit with wide cross-specification adaptability. It is a necessary standard configuration for maintenance departments of all medium and large-scale mineral processing mines, effectively guarantees continuous stable operation of core crushing equipment, reduces unexpected breakdown frequency and spare parts consumption of mining crushers, and brings remarkable economic benefits for mining enterprises via improving production continuity and controlling equipment maintenance expense.
